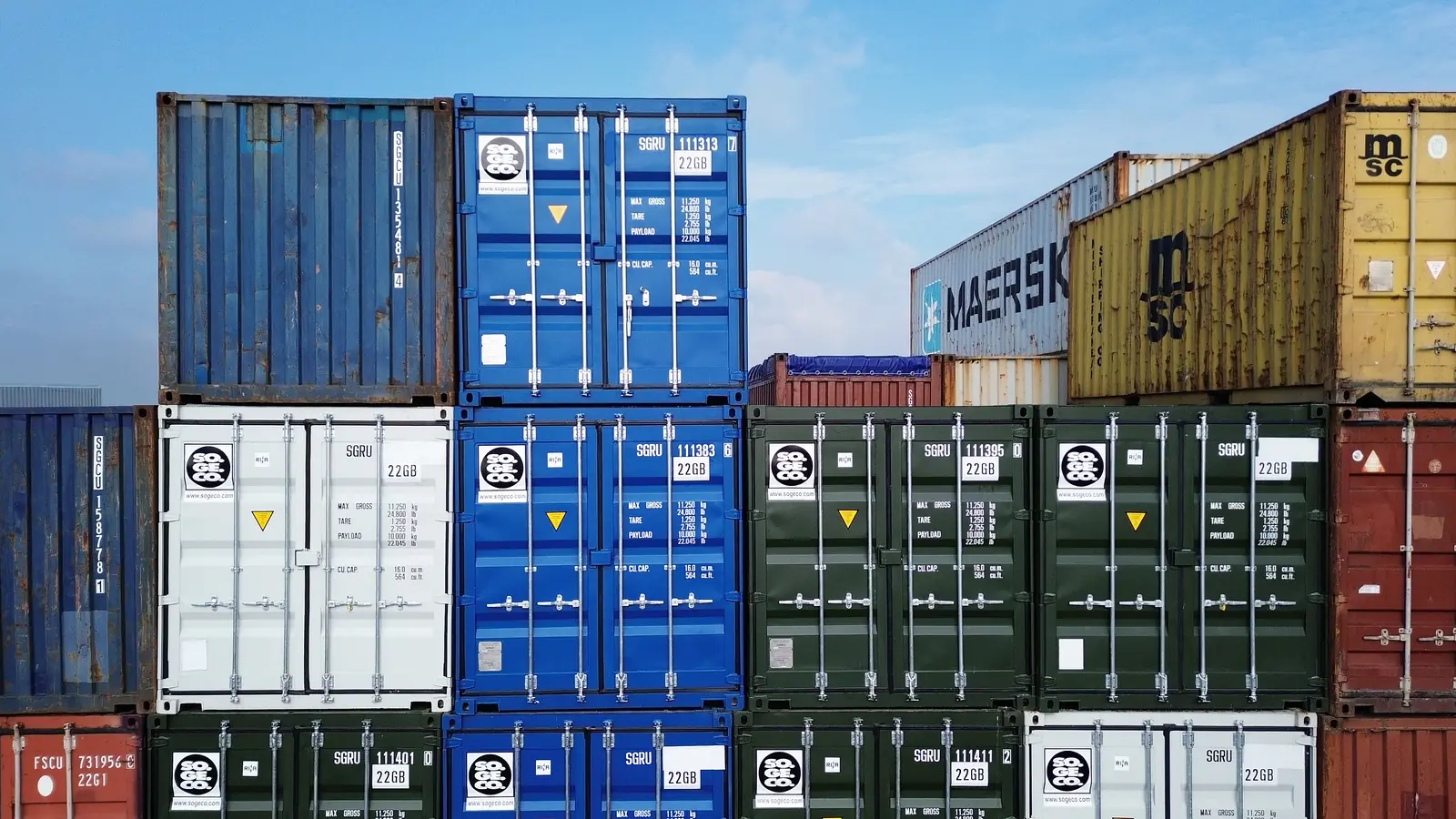

Our Containers

Brand New, One Trip or Cargo Worthy

Brand New

The “brand new” containers are the containers empty positioned from factories .This category includes 6’, 8’ and 10’ storage units,20’ and 40’ Open Tops, 20’ and 40’ Flat Racks, 40' Open Side, 20’ and 40’ High Cube Reefers (standard or “Polar”), 20’ Tanks as well as all accommodation or other special or converted containers. These units have a CSC plate valid for 5 years from their manufacturing date. As a rule,all containers used for international transport must be fitted with a valid safety approval plate (the CSC Plate).

One Trip

The “one trip” containers are the containers positioned with cargo  to Sogeco’s worldwide markets through a dedicated sea or rail voyage  (latter for 40’  dry vans only). This category of containers is  therefore used only for a few weeks before being returned to our nominated depots and includes all Dry Vans (20’,40’standard or High Cube), Double Door or "Tunnel" containers (20’,40’ Standard or High Cube)  and Open Side containers (20’ and 20’ High Cube). These units have a CSC plate valid for 5 years from their manufacturing date.

ISO Converted

ISO containers modified according to customers’ requirements

Cargo Worthy

The “Cargo Worthy” containers  ,also known as “old containers”,“second hand containers”,”last trip containers ”,”last voyage containers”,”sea worthy containers”, “ wind and water tight containers (WWT) ”… are  the containers used for a few or several years.Sogeco has graded its used containers for sale or lease as “Cargo Worthy”,”Cargo Worthy Selection” and “Cargo Worthy Selection Plus” based on containers’ age  and their structural and cosmetic condition. These units ,upon request ,come with  CSC plate and relevant certificate issued by the  Classification Society  valid for 12 months from the date of issuance. Upon customer’s request,Sogeco customizes sold containers in Sogeco’s depots in Genoa,Milan and Venice and delivers them to customer’s premises by standard or self sustained truck.

Multi Stock
  • 20'/40' DV/HC
  • 20'/40' Open Top
  • 20'/40' Flat Rack
  • 20'/40' Reefer
  • 20' Tank
Multi Stock Special Containers
  • 6'/8'/10' Minibox
  • 40' Double Door DV/HC
  • 20' Double Door DV/HC
  • 20' Open Side DV/HC
  • 40' Self Storage
Polar Box
  • 10'/20' Polar Box
  • 40' HC Polar Box
Offshore

Containers for storage for the oil and gas industry

Multi House Container System

Containers becoming versatile living spaces

Multi Stock

Containers for static storage and maritime transportation
  • Dry Van & HC 20'/40'
  • Open Top 20'/40'
  • Flat Rack 20'/40'
  • Reefer 20'/40'
  • Tank 20'
Sogeco Multistock container system

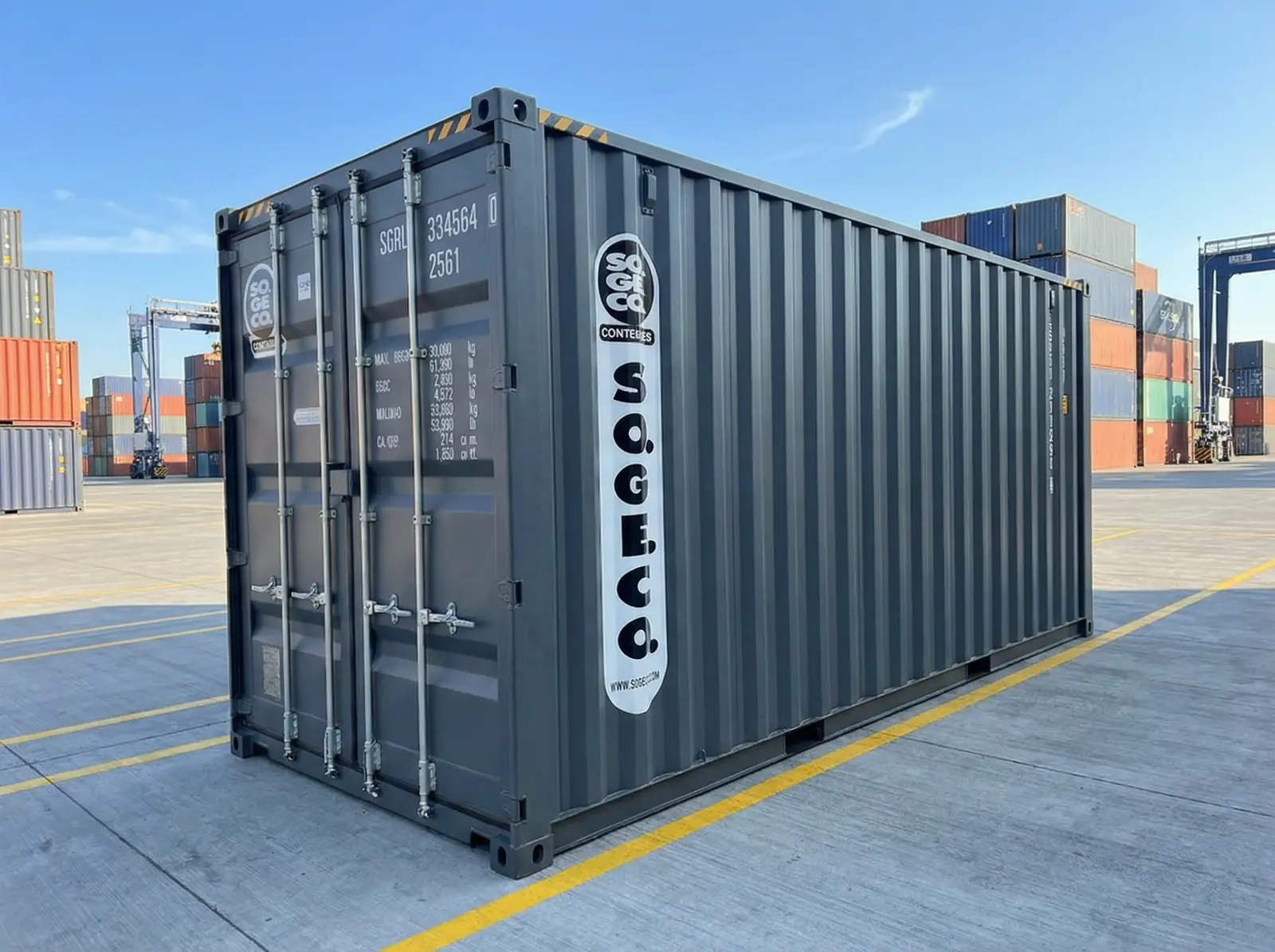

20' DV/HC

Technical Details 20' DV
  • External Dimension LxWxH6058 x 2438 x 2591
  • Internal dimension LxWxH5898 x 2352 x 2393
  • Door Opening WxH2340 x 2280
  • Cubic Capacity33.2
  • Tare2.180
  • Payload28.300
  • Maximum Gross Weight30.480
Technical Details 20' HC
  • External Dimension LxWxH6058 x 2438 x 2896
  • Internal dimension LxWxH5898 x 2352 x 2698
  • Door Opening WxH2330 x 2580
  • Cubic Capacity37.4
  • Tare2.250
  • Payload28.230
  • Maximum Gross Weight30.480

Dimensions ± 5mm; weight ± 2%

40' DV/HC

Technical Details 40' DV
  • External Dimension LxWxH12192 x 2438 x 2591
  • Internal dimension LxWxH12032 x 2352 x 2393
  • Door Opening WxH2340 x 2280
  • Cubic Capacity67.8
  • Tare3.740
  • Payload26.740
  • Maximum Gross Weight30.480

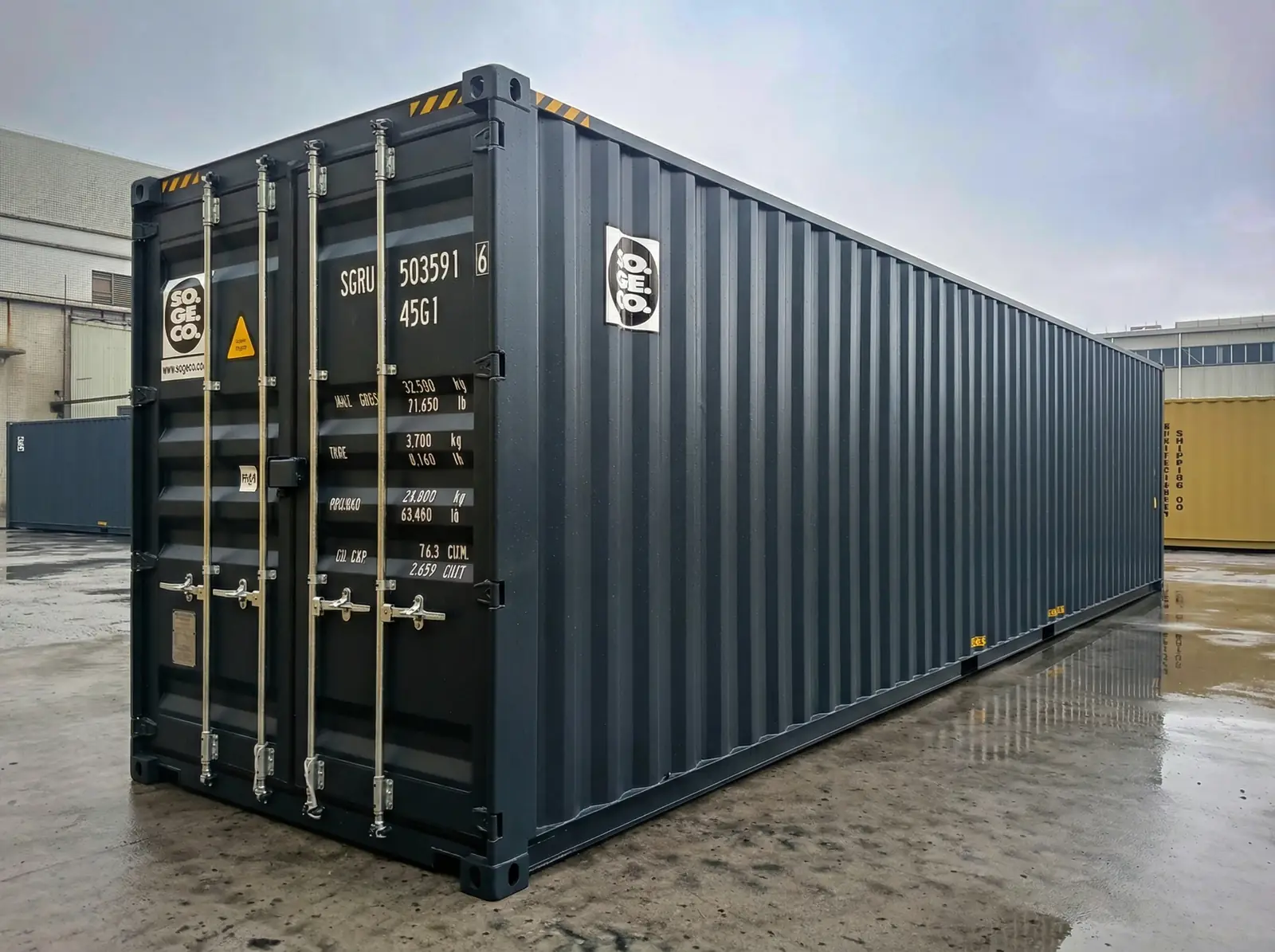

Technical Details 40' HC
  • External Dimension LxWxH12192 x 2438 x 2896
  • Internal dimension LxWxH12032 x 2352 x 2698
  • Door Opening WxH2340 x 2585
  • Cubic Capacity76.4
  • Tare3.800
  • Payload28.700
  • Maximum Gross Weight32.500

Dimensions ± 5mm; weight ± 2%

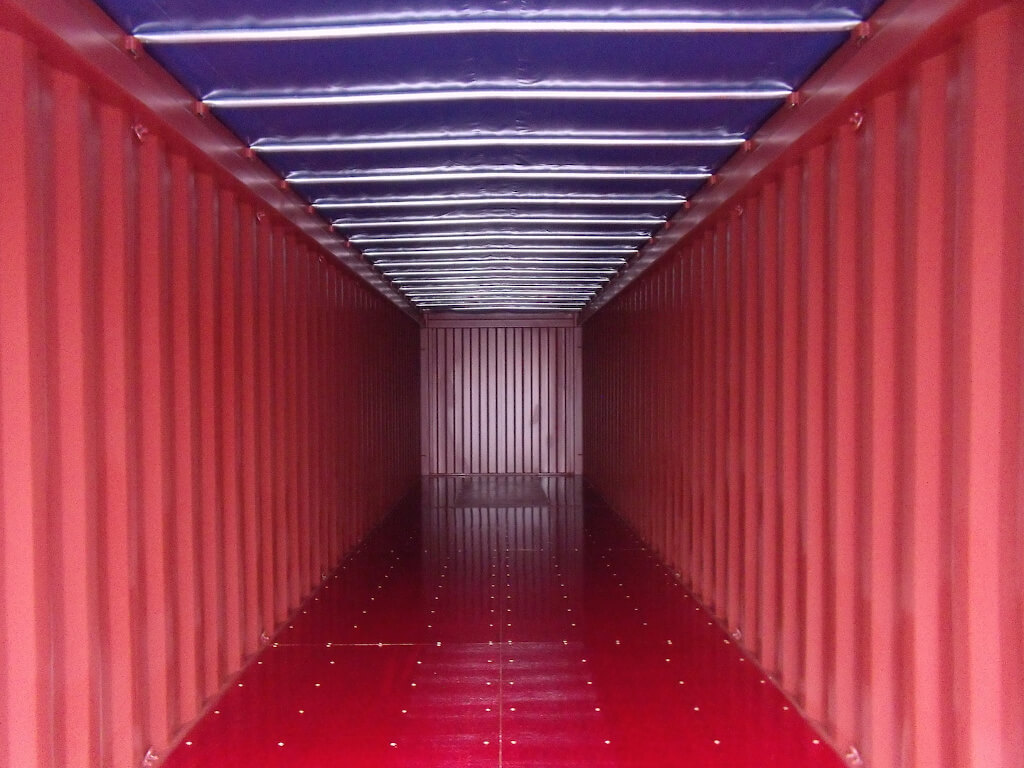

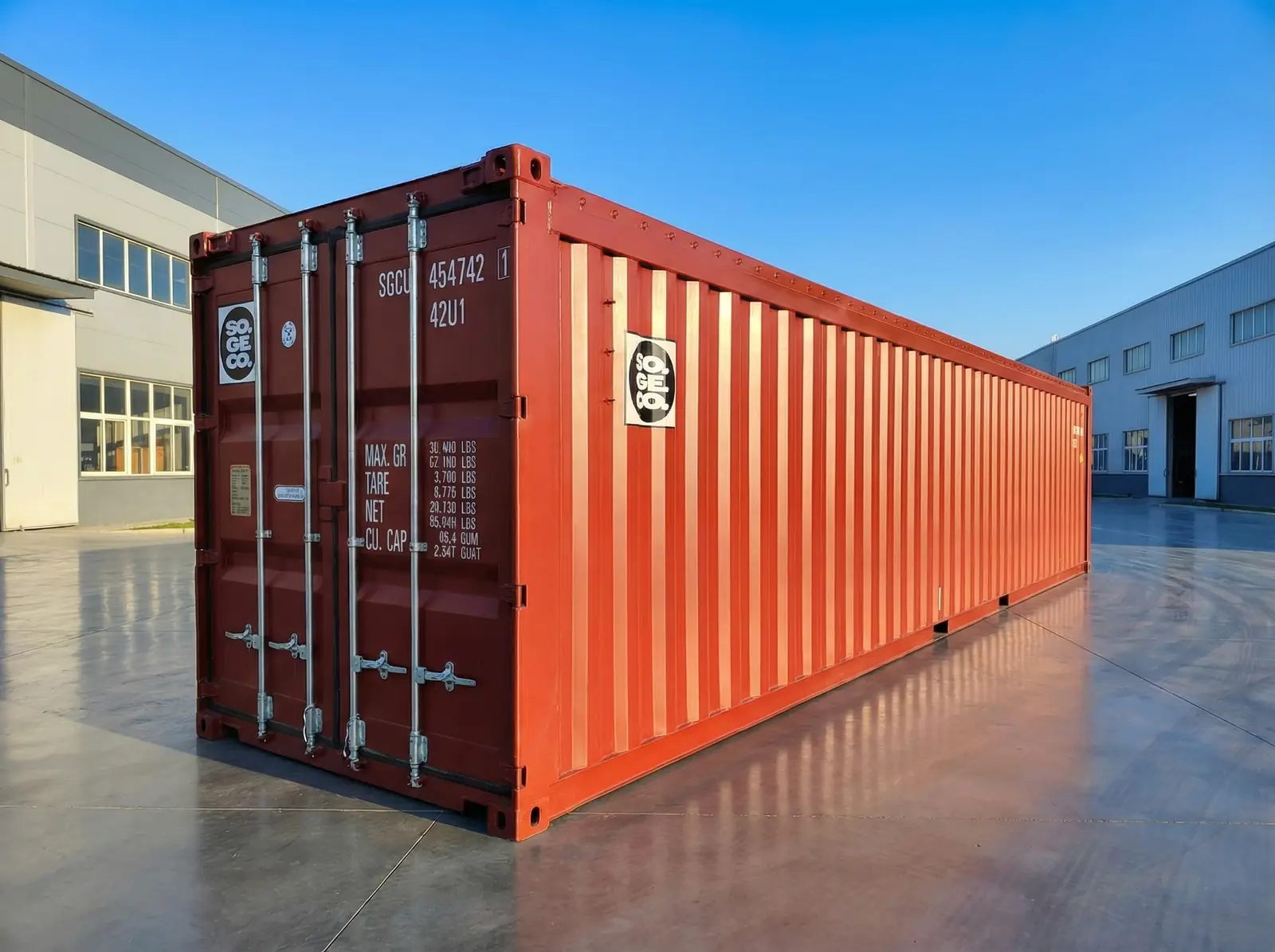

20'/40' Open Top

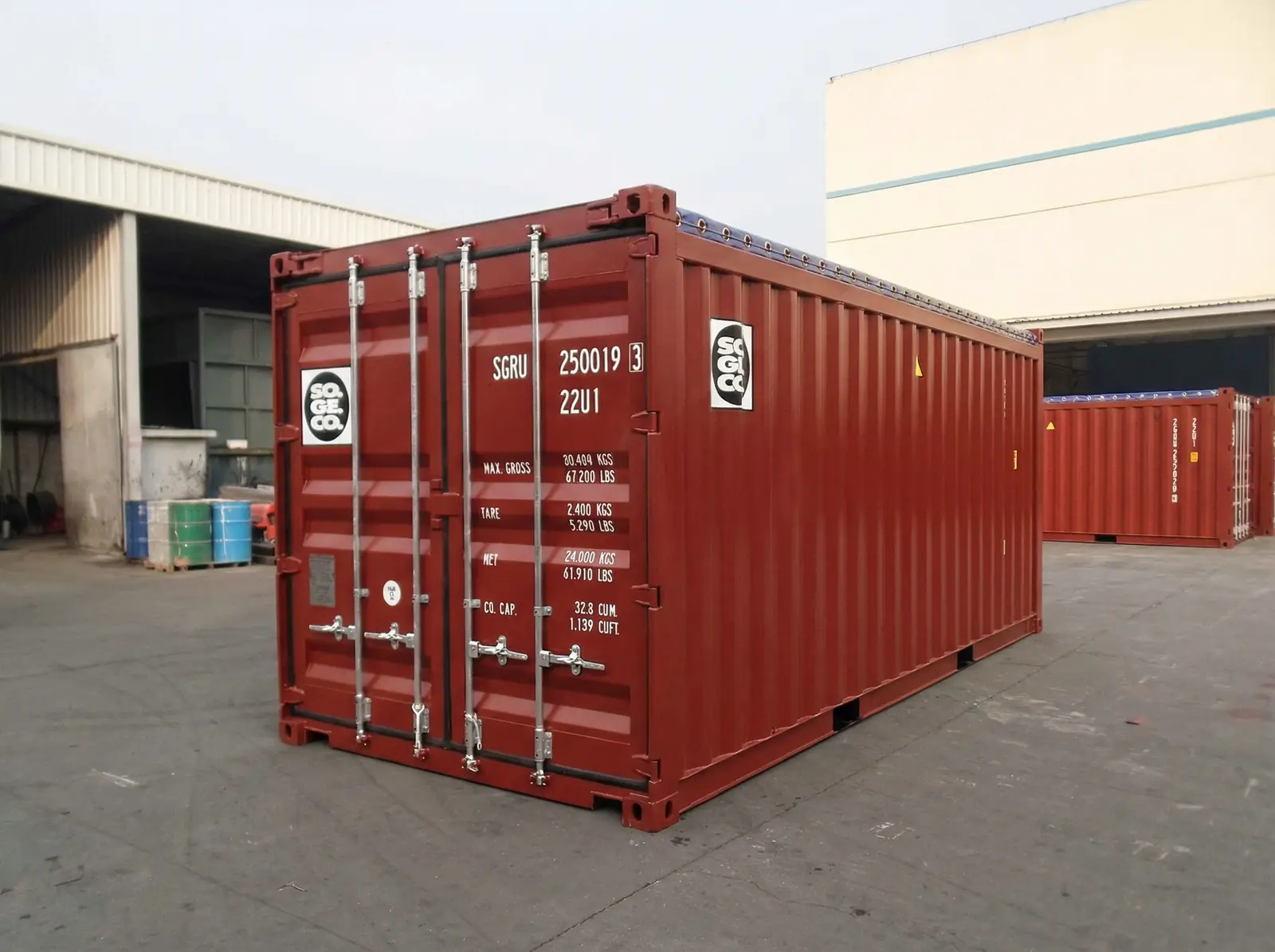

Technical Details 20' OT
  • External Dimension LxWxH6058 x 2438 x 2591
  • Internal dimension LxWxH5898 x 2352 x 2384
  • Door Opening WxH2330 x 2244
  • Cubic Capacity32.8
  • Tare2.400
  • Payload28.080
  • Maximum Gross Weight30.480
Technical Details 40' OT
  • External Dimension LxWxH12192 x 2438 x 2591
  • Internal dimension LxWxH12032 x 2346 x 2348
  • Door Opening WxH2330 x 2244
  • Cubic Capacity66.4
  • Tare3.750
  • Payload26.730
  • Maximum Gross Weight30.480

Dimensions ± 5mm; weight ± 2%

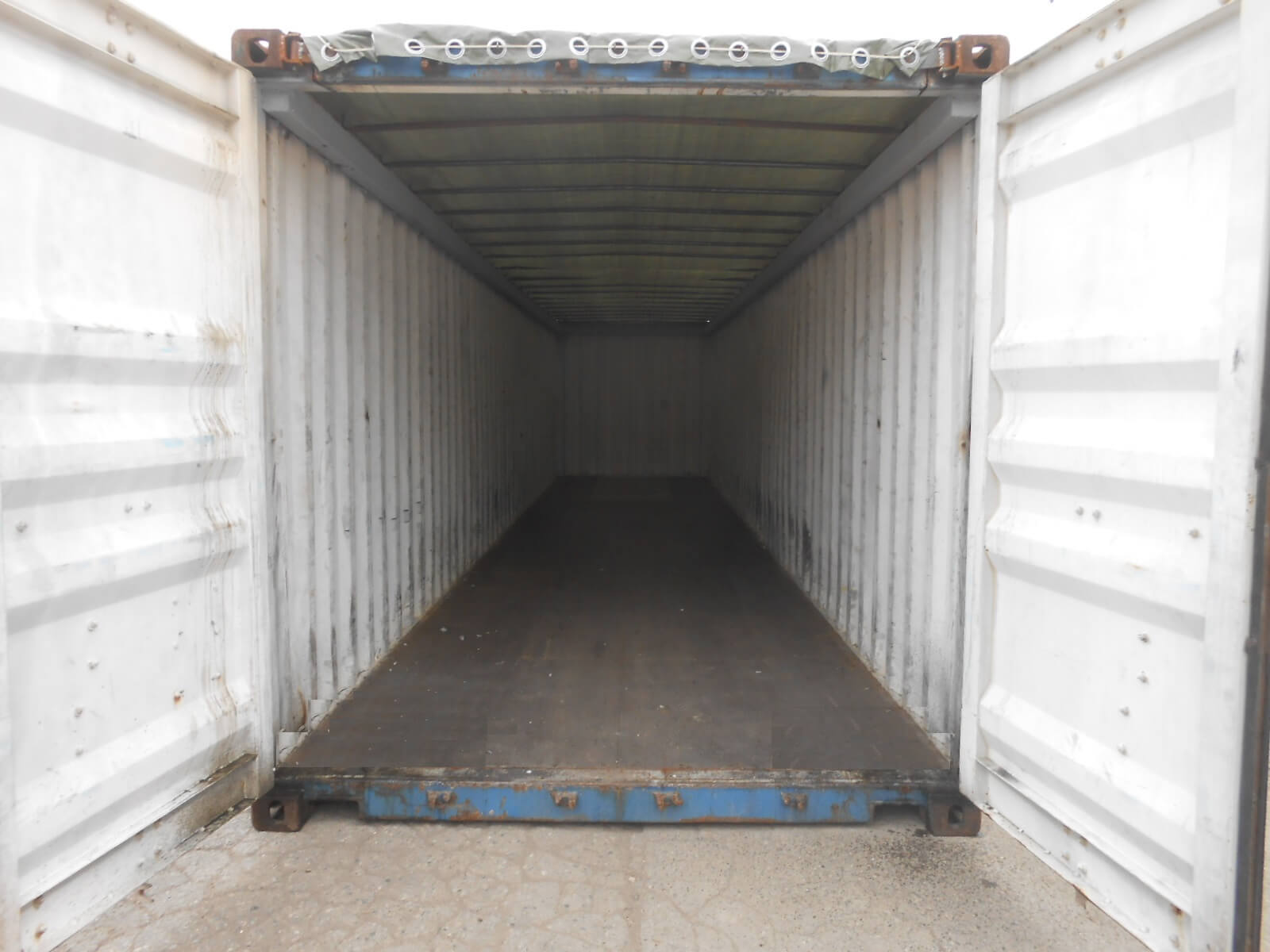

40' OT Converted

Technical Details 40' OT Converted
  • External Dimension LxWxH12192 x 2438 x 2591
  • Internal dimension LxWxH12032 x 2346 x 2348
  • Door Opening WxH2330 x 2244
  • Cubic Capacity66.4
  • Tare3.900
  • Payload26.000/20.000
  • Maximum Gross Weight30.000/24.000
  • Stacking91.440 Kgs

Dimensions ± 5mm; weight ± 2%

20'/40' Flat Rack

Technical Details 20' Flat Rack
  • External Dimension (Base Bottom Casting)LxW6058 X 2438
  • External Dimension (End Frame Erected) H2591
  • External Dimension (End Frame Folded) H370
  • Internal Dimension (Between End Panels) L6038
  • Internal Dimension (Between Corner Posts) L5632
  • Internal Dimension (Over Bottom Side Rail) W2194
  • Internal Dimension (Between Corner Post) W2226
  • Tare2800 Kgs
  • Payload31200 Kgs
  • Maximum Gross Weight34000 Kgs
Technical Details 40' Flat Rack
  • External Dimension (Base Bottom Casting)LxW12192 X 2438
  • External Dimension (End Frame Erected) H2591
  • External Dimension (End Frame Folded) H 648
  • Internal Dimension (Between End Panels) L 12064
  • Internal Dimension (Between Corner Posts) L 11652
  • Internal Dimension (Over Bottom Side Rail) W2374
  • Internal Dimension (Between Corner Post) W2220
  • Tare5100 Kgs
  • Payload47400 Kgs
  • Maximum Gross Weight52500 Kgs

Dimensions ± 5mm; weight ± 2%

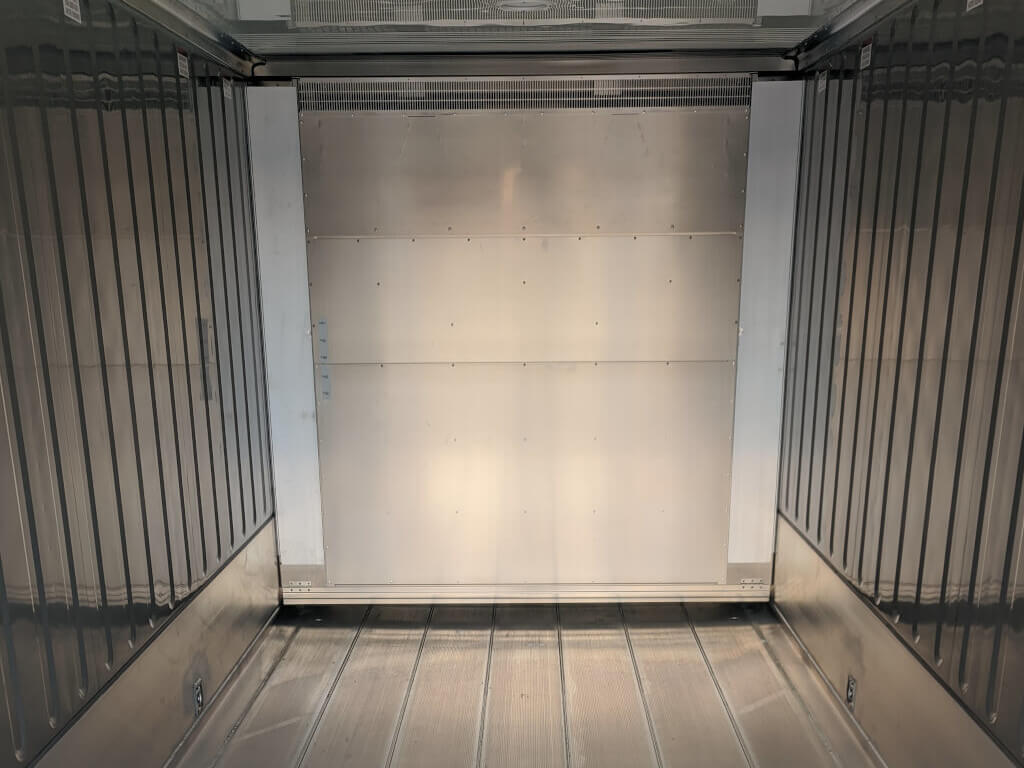

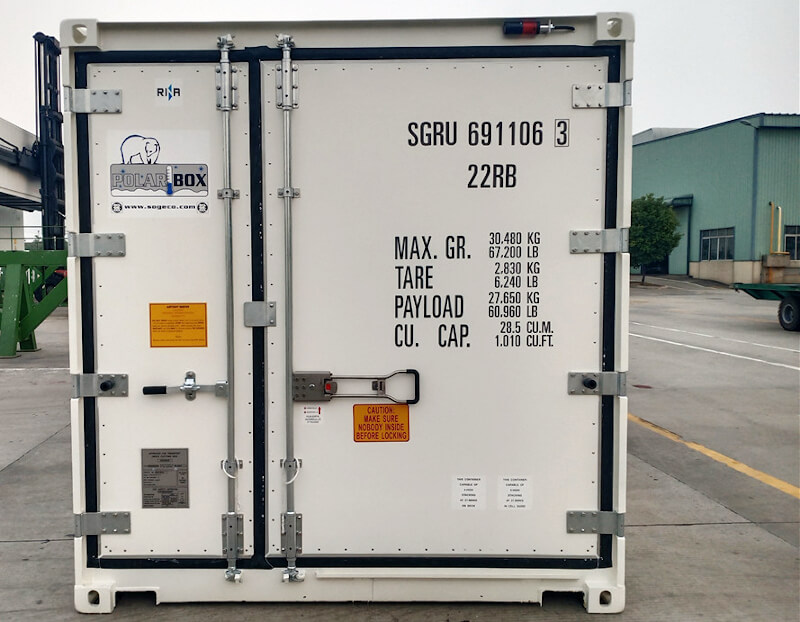

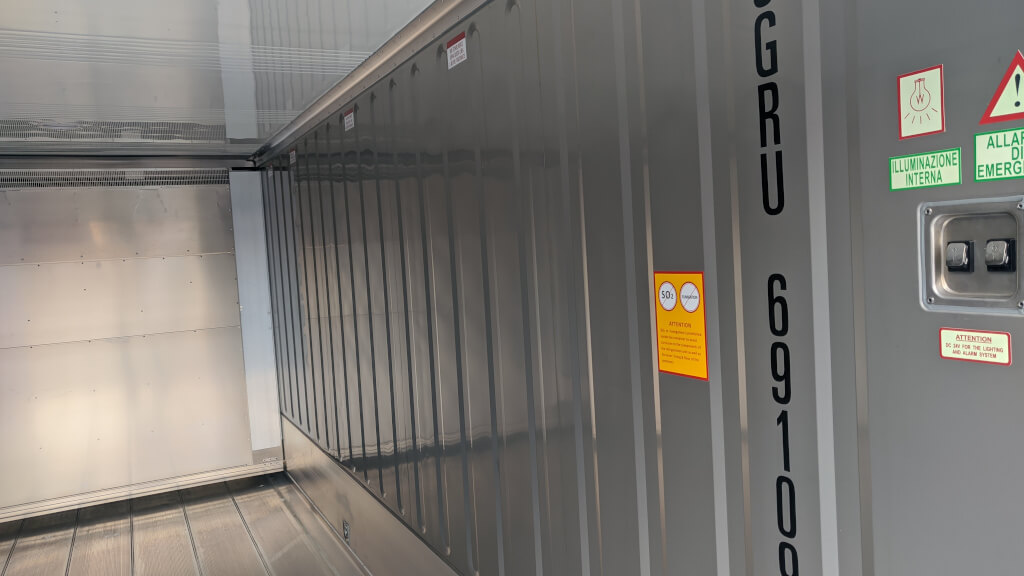

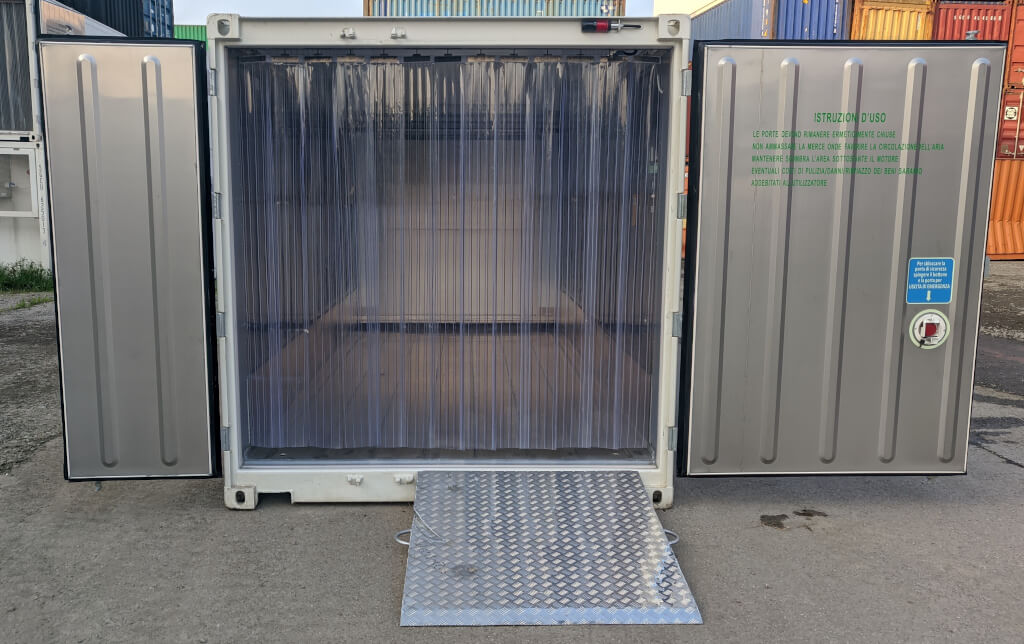

Polar Box

Multi Featured refrigerated containers for static storage

The Polar Box represents a long waited innovation in the domestic reefer container market. Refrigerated containers used on land require features that guarantee an easy usage of the container.

That is why all users can easily open the door thanks to the new handle, roll in their cargo thanks to the access ramp, more easily clean the floor and walk on it thanks to its flat design, clearly see their cargo inside thanks to the concealed LED lighting, open the door also from the inside thanks to the internal door release button or activate the siren thanks to the emergency button.

This is the Polar Box. Safe and easy.

Polar Box Super Silent 20'
  • External Dimension LxWxH6058 x 2438 x 2591
  • Internal dimension LxWxH5317 x 2292 x 2308
  • Door Opening WxH2196 x 2251
  • Cubic Capacity28,1
  • MachineryCIBIN
  • Power supply400 - 3 - 50 Hz
  • External socket5 poles(3 phases+earthing+nautral;16A)
  • Setting temperature-20°/+20° C
Polar Box Super Cold 20'
  • External Dimension LxWxH6058 x 2438 x 2591
  • Internal dimension LxWxH5462 x 2294 x 2308
  • Door Opening WxH2290 x 2256
  • Cubic Capacity28,9
  • MachineryThermo King Magnum Plus/Daikin LXE10
  • Power supply400 - 3 - 50 Hz
  • External socket type4 poles (3 phases + earthing; 32 A)
  • Setting temperature-30°,-40°/+30° C
Polar Box Super Cold 40' HC
  • External Dimension LxWxH12192 x 2438 x 2896
  • Internal dimension LxWxH11596 x 2294 x 2613
  • Door Opening WxH2290 x 2596
  • Cubic Capacity69.5
  • MachineryThermo King Magnum Plus/Daikin LXE10
  • Power supply400 - 3 - 50 Hz
  • External socket type4 poles (3 phases + earthing; 32 A)
  • Setting temperature-30°,-40°/+30° C
Polar Box Super cold 10'
  • External Dimension LxWxH2998 x 2430 x 2591
  • Internal dimension LxWxH 2440 x 2291 x 2282
  • Door Opening WxH2290 x 2264 X 2221
  • Cubic Capacity12.5
  • Payload8000
  • Tare2000
  • MachineryDaikin LXE10
  • Power supply400 - 3 - 50 Hz
  • Operating power6/8 KWz
  • External socket type3 poles + earthing: 32 A
  • Setting temperature-30°,-40°/+30° C

Dimensions ± 5mm; weight ± 2%

Sogeco Polar Box

20'/40' Reefer

Technical Details 20' Reefer
  • EXTERNAL DIMENSION LXWXH6058 x 2438 x 2591
  • INTERNAL DIMENSION LXWXH 5458 x 2269 x 2262
  • DOOR OPENING WXH2290 x 2267
  • CUBIC CAPACITY28
  • MachineryCarrier/Daikin/Thermo King
  • Power supply400 - 3 - 50 Hz
  • External socket type4 poles (3 phases + earthing; 32 A)
  • Setting temperature-25°/+25° C
Technical Details 40' HC Reefer
  • EXTERNAL DIMENSION LXWXH12192 x 2438 x 2896
  • INTERNAL DIMENSION LXWXH 11587 x 2290 x 2539
  • DOOR OPENING WXH2290 x 2572
  • CUBIC CAPACITY67.3
  • MachineryCarrier/Daikin/Thermo King
  • Power supply400 - 3 - 50 Hz
  • External socket type4 poles (3 phases + earthing; 32 A)
  • Setting temperature-25°/+25° C

Dimensions ± 5mm; weight ± 2%

Multi Stock Special Containers

Special containers for static storage
  • Minibox 6'/8'/10'
  • Double Door 20'/40'
  • Open Side 20'/40'
Sogeco Multistock container system

6'/8'/10' Mini Box

Technical Details 6'
  • External Dimension LxWxH1970 X 1954 X 1900
  • Internal dimension LxWxH1888 X 1888 X 1732
  • Door Opening WxH1854 X 1655
  • Cubic Capacity6
  • Tare650
  • Payload4,000
  • Maximum Gross Weight4,650
Technical Details 8'
  • External Dimension LxWxH2438 x 2200 x 2250
  • Internal dimension LxWxH2287 x 2112 x 2052
  • Door Opening WxH1904 x 2066
  • Cubic Capacity9,5
  • Tare880
  • Payload4.210
  • Maximum Gross Weight5.000
Technical Details 10'
  • External Dimension LxWxH2991 x 2438 x 2591
  • Internal dimension LxWxH2840 x 2350 x 2393
  • Door Opening WxH2340 x 2280
  • Cubic Capacity16
  • Tare1.300
  • Payload8.860
  • Maximum Gross Weight10.160

Dimensions ± 5mm; weight ± 2%

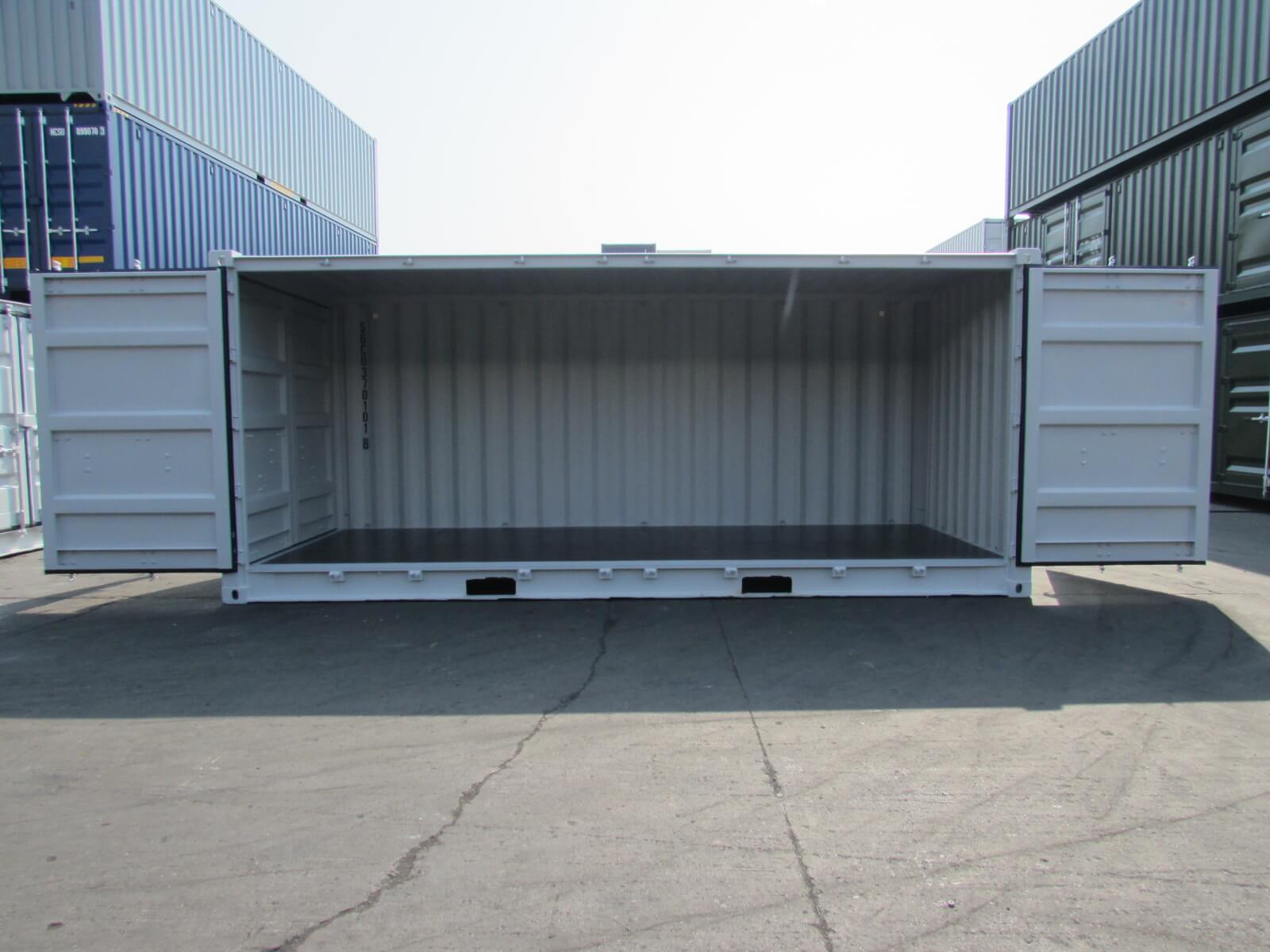

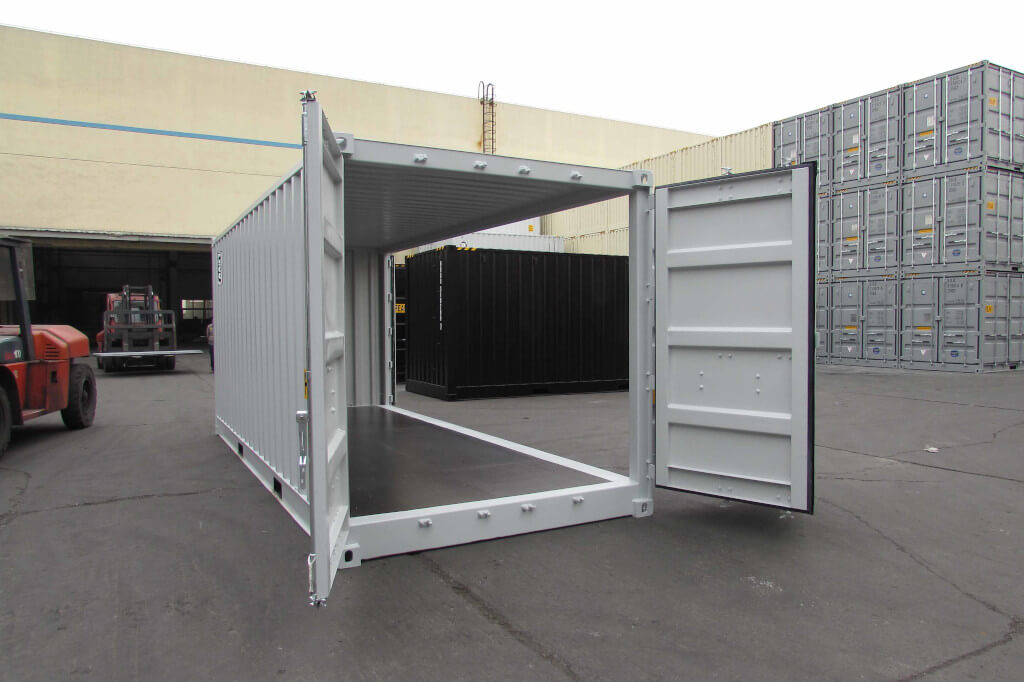

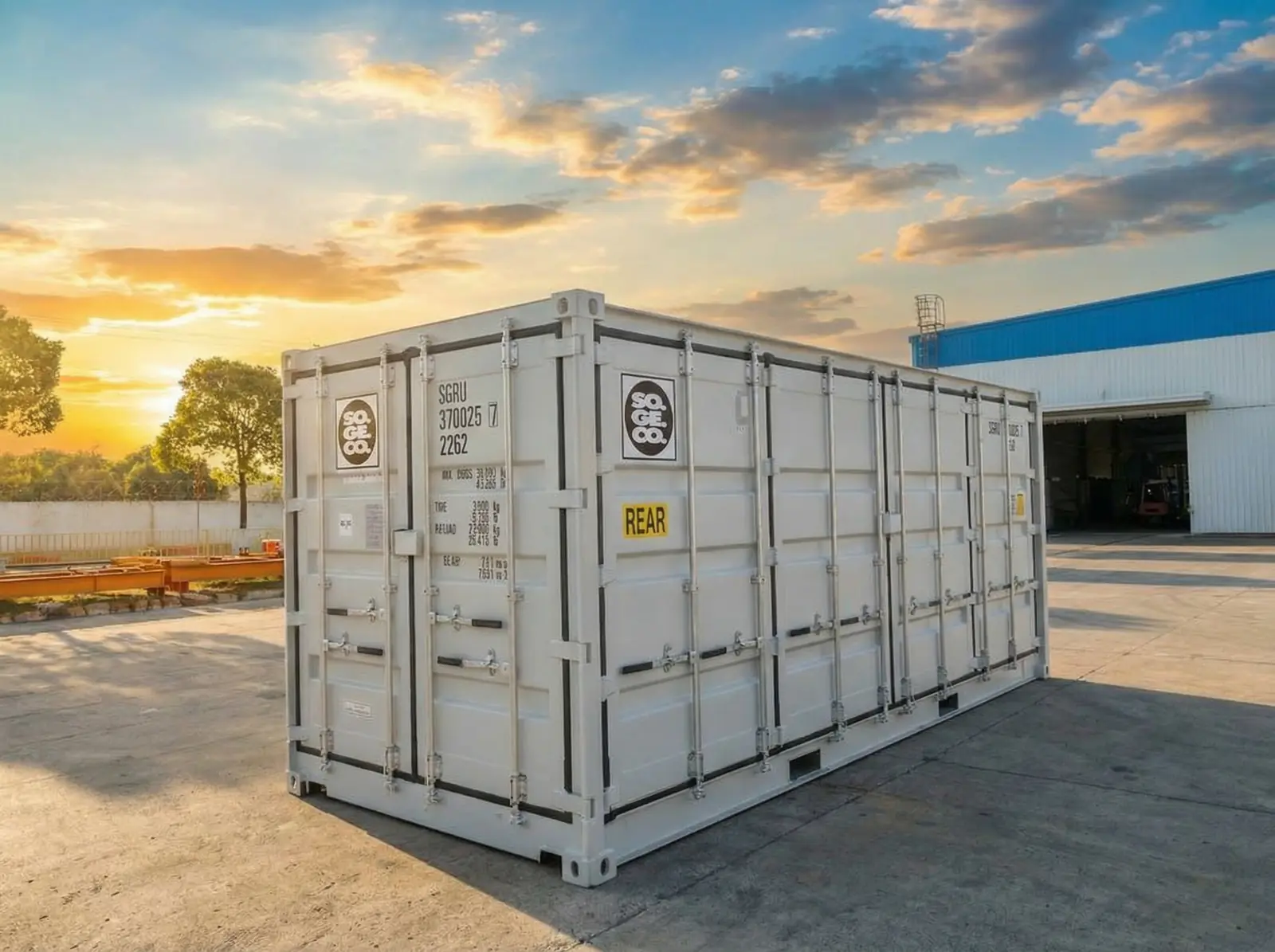

20' Open Side DV/HC

Technical Details 20' Open Side DV
  • Misure esterne LxWxH6058 x 2438 x 2591
  • Internal dimension LxWxH5898 x 2287 x 2302
  • Door Opening WxH2226 x 2189
  • Side Door Opening WxH5702 x 2189
  • Cubic Capacity31.1
  • Tare2.830
  • Payload21.170
  • Maximum Gross Weight24.000
Technical Details 20' Open Side HC
  • External Dimension LxWxH6058 x 2438 x 2896
  • Internal dimension LxWxH5898 x 2288 x 2607
  • Door Opening WxH2226 x 2487
  • Side Door Opening WxH5702 x 2494
  • Cubic Capacity35
  • Tare3.500
  • Payload20.500
  • Maximum Gross Weight24.000

Dimensions ± 5mm; weight ± 2%

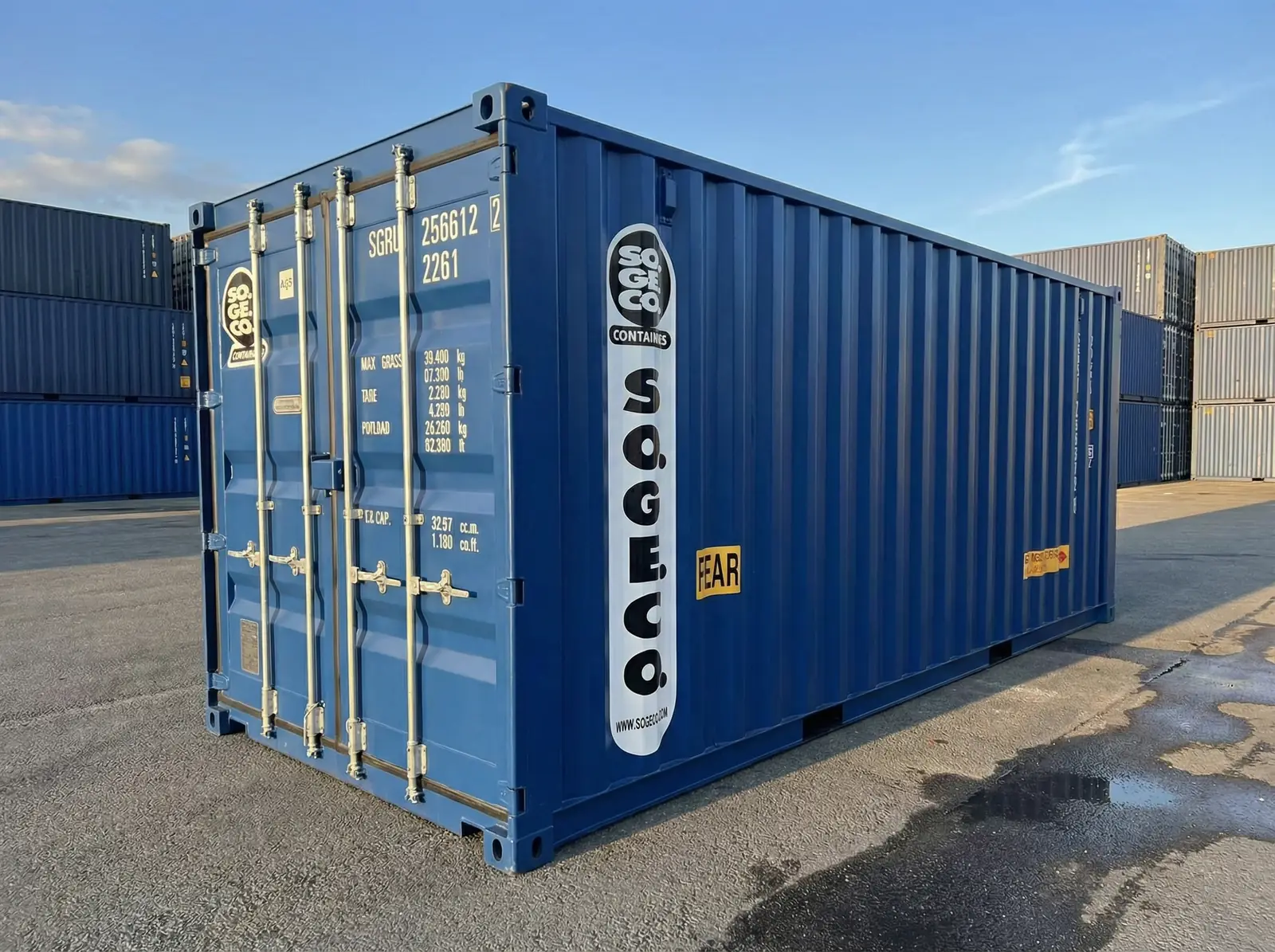

20' Double Door DV/HC

Technical Details 20' Double Door DV
  • External Dimension LxWxH6058 X 2438 X 2591
  • Internal dimension LxWxH5844 X 2352 X 2393
  • Door Opening WxH2343 X 2280
  • Cubic Capacity32.9
  • Tare2,355
  • Payload28,125
  • Maximum Gross Weight30,480

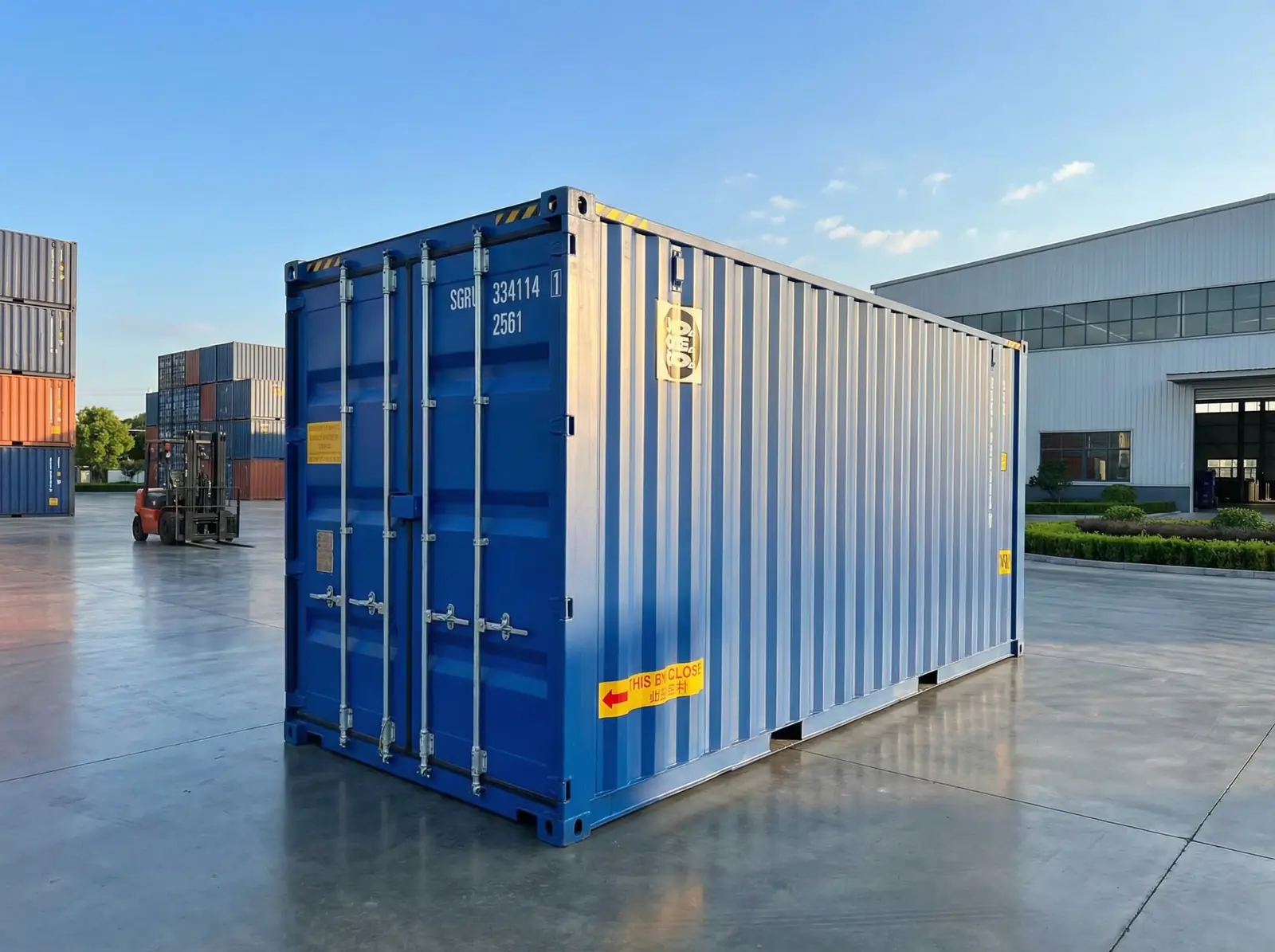

Technical Details 20' Double Door HC
  • External Dimension LxWxH6058 x 2438 x 2896
  • INTERNAL DIMENSION LxWxH5844 x 2352 x 2698
  • Door Opening WxH2340 x 2585
  • Cubic Capacity37.1
  • Tare2.480
  • Payload28.000
  • Maximum Gross Weight30.480

Dimensions ± 5mm; weight ± 2%

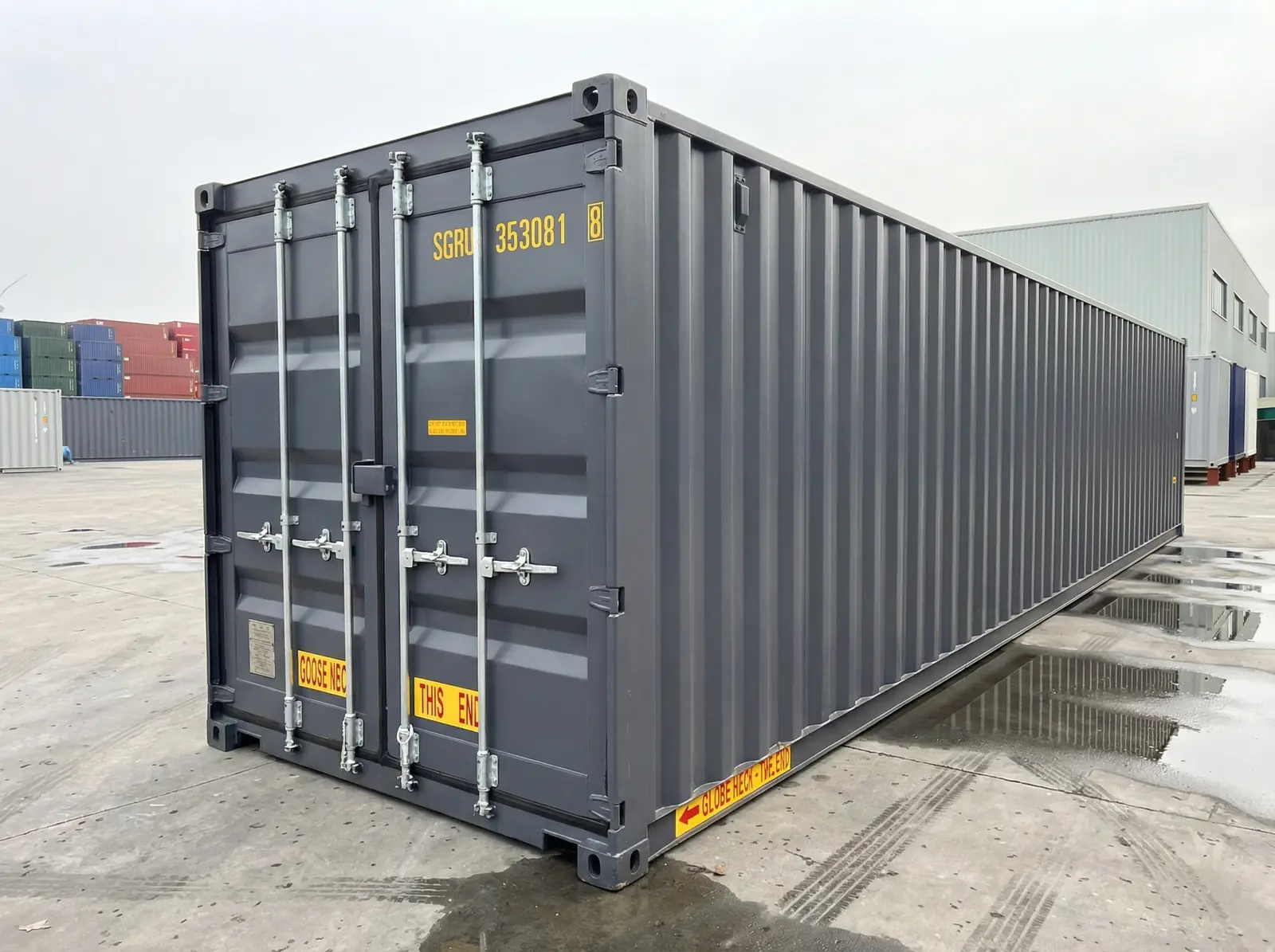

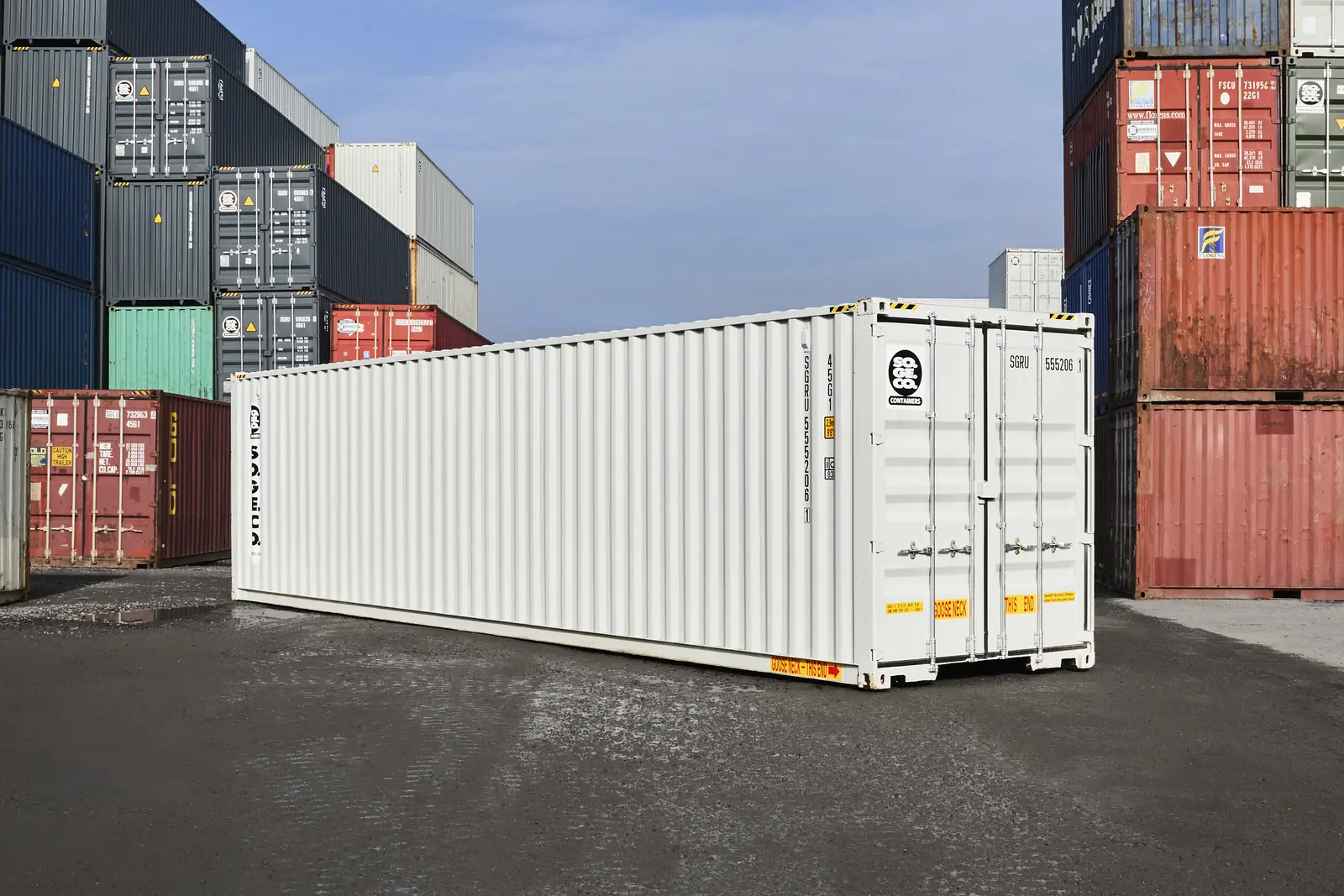

40' Double Door DV/HC

Technical Details 40' Double Door DV
  • External Dimension LxWxH12192 X 2438 X 2591
  • Internal dimension LxWxH11978 X 2352 X 2393
  • Door Opening WxH2340 X 2280
  • Cubic Capacity67.3
  • Tare4,000
  • Payload26,480
  • Maximum Gross Weight30,480
Technical Details 40' Double Door HC
  • EXTERNAL DIMENSION LXWXH12192 x 2438 x 2896
  • INTERNAL DIMENSION LXWXH11978 x 2352 x 2698
  • DOOR OPENING WXH2340 x 2585
  • CUBIC CAPACITY75.9
  • Tare4.120
  • Payload28.380
  • MAXIMUM GROSS WEIGHT32.500

Dimensions ± 5mm; weight ± 2%

40' Self Storage

Technical Details 40' 4/6/8 doors
  • EXTERNAL DIMENSION LXWXH12192 X 2438 X 2591
  • INTERNAL DIMENSION LXWXH11978 X 2352 X 2393
  • DOOR OPENING WXH2340 X 2280
  • PEDESTRIAN DOOR OPENING WXH1179 X 2290
  • CUBIC CAPACITY67.3
  • Tare4,200/4,600/4,900
  • Payload7,100 /7,400/7,800
  • MAXIMUM GROSS WEIGHT12.000

Dimensions ± 5mm; weight ± 2%

20' Tank

Technical Details 20' Tank
  • External Dimension LxWxH6058 X 2438 X 2591
  • Cargo capacity21,000 to 26,000 LTR
  • Tare weight3,540 to 3,830 Kgs
  • Maximum Gross Weight36,000 Kgs
  • Ambient Temperature Range-40°C to +65°C
  • Maximum Cargo Teperature130°C

Dimensions ± 5mm; weight ± 2%

Offshore

Containers for storage for the oil and gas industry

SOGECO International supplies an extensive range of customers with containers of different size and type engineered for use in the offshore Oil and Gas industry. All units are designed, built and certified to DNV regulations. Units are DNV certified for offshore use , ISO rated and CSC plated for multimodal transportation.

Sogeco Polar Box
Technical Details 8' Offshore
  • External Dimensions LxWxH6058 X 2438 X 2591
  • Internal Dimensions LxWxH2184 x 2242 x 2242
  • Door Opening Width x Height (mm)2200 x 2264
  • Volume18 cubic meters
  • Tare weight1,750 Kgs
  • Maximum Gross Weight9,750 Kgs
Technical Details 10' Offshore
  • External Dimensions LxWxH2991 x 2438 x 2591
  • Internal Dimensions LxWxH2804 x 2270 x 2243
  • Door Opening Width x Height (mm)2200 x 2264
  • Volume18 cubic meters
  • Tare weight2,400 Kgs
  • Maximum Gross Weight10,000 Kgs
Technical Details 20' Offshore
  • External Dimensions LxWxH6068 x 2438 x 2591
  • Internal Dimensions LxWxH5865 x 2260 x 2220
  • Door Opening Width x Height (mm)2200 x 2264
  • Volume18 cubic meters
  • Tare weight3,800 Kgs
  • Maximum Gross Weight24,000 Kgs

Dimensions ± 5mm; weight ± 2%

Multi House

Modules used as office, accommodation, disaster relief

Being a modular container, it can be joined to create larger spaces and can be stacked 3-high. Offered layouts for a standard 20 foot unit range from single or double room to ablution and sanitary containers. Multi House is the flat-pack container renowned all over the world. Individual units or composite and modular structures for all accommodation solutions in hot and cold climates. Ideal solution whenever you have a need for any “off the shelf” containerized space.

Multihouse Container System Classic
Our
Services

Whatever your needs are, we can satisfy your demand because our expertise ranges from new to used equipment, anywhere worldwide.

of brand new,first trip and second hand containers
and one way leasing of ISO containers
of sold containers with buyer’s colour and logo
of our sold and leased containers
through 70,000 square meters of storage space
of ISO containers according to customers’ layout

“Containers on sea and land„

Sogeco International SA


  • Via San Salvatore, 13
  • 6900 Paradiso, Switzerland

Get in Touch


  • This email address is being protected from spambots. You need JavaScript enabled to view it.

Social


Copyright 2020 - Sogeco International SA, via San Salvatore 13, 6900 Paradiso Switzerland - VAT CHE-170059677
